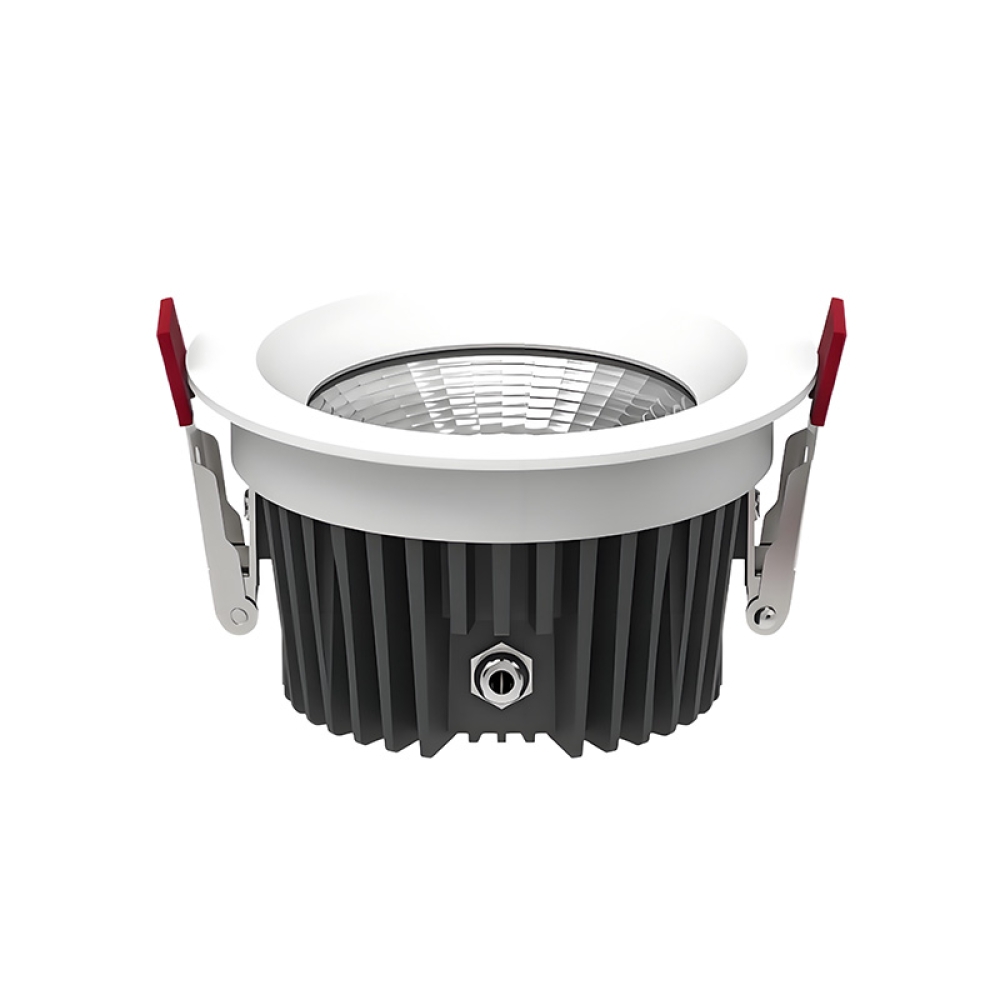

Model Code: DL02 Waterproof
Power: 21W
Input: AC220-240V, 50~60Hz
Dimension: Ø127x70 mm
Cutout: Ø110 mm
Lumen Flux: 2100 lm
CRI: >80 & >90 & >95.
Beam Angle: 60 deg.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP65
1. Good quality die-cast aluminum make sure excellent heat dissipation.
2. Wide beam, as general lighting
3. Mellow and even light output filtered by a special optical diffuser
4. Cutout size from 3" to 8" meet different projects requirement.
5. Easy to install helps saving time on construction.
Material: Aluminum.
No. | Model Code | Power (W) | Dimension (mm) | Cutout (mm) | Beam Angle |
1 | DL02-R | 15W | φ110*H59 | ø100 | 100° |
2 | DL02-R | 21W | φ127*H70 | ø110 | 100° |
3 | DL02-R | 30W | ø165*H80 | ø145 | 100° |

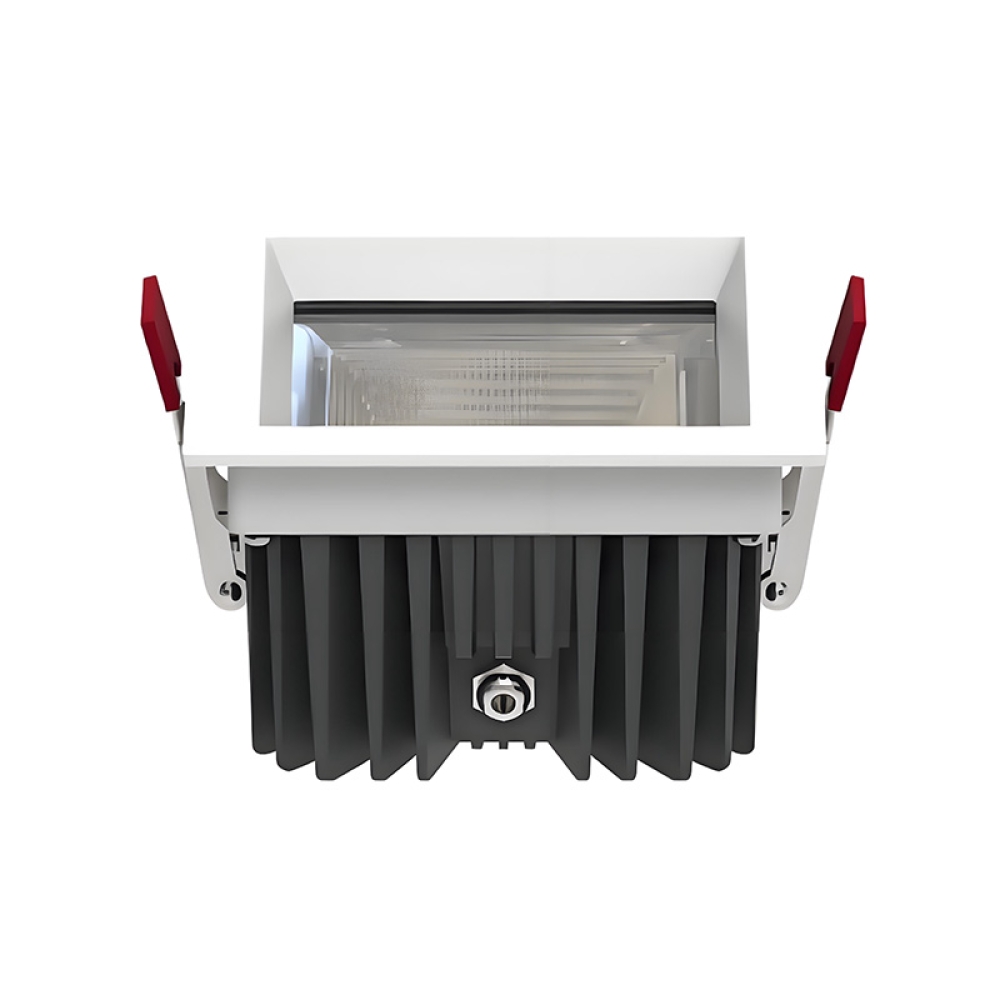

4 | DL02-S | 15W | φ110*φ110*H59 | ø100 | 100° |
5 | DL02-S | 21W | φ127*φ127*H70 | ø110 | 100° |
6 | DL02-S | 30W | ø165*ø165*H80 | ø145 | 100° |
