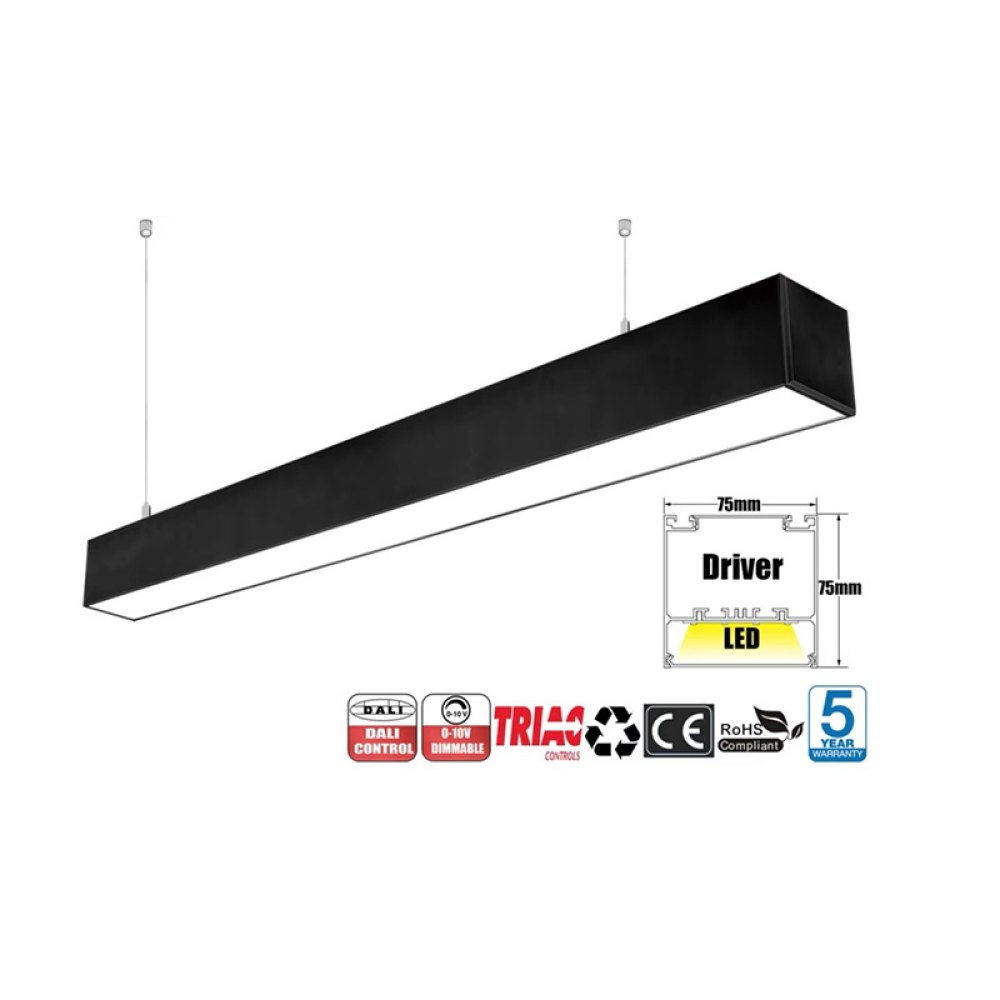

Model Code: LL02
Input Voltage : AC100-277V / AC220-240V,50-60HZ
Material : 6063 Aluminium Profile + Opal Diffuser / Microprism Diffuser
LED Chip : SANAN SMD2835
Driver Brand : BOKE (220-240V) / Cupower (100-277V)
Color Temperature : 3000K / 4000K / 6000K
Luminous Flux : 100-110Lm/W
CRI : >80Ra
PF : >0.95
UGR : <19
Fllicker Free : Yes
Function Option : ON/OFF no dimming / 0-10V / Triac / DALI / DALI DT8
Finish Color Option : Black / White / Silver
Profile Size Option : W75*H75mm
Model | Watt | Lumens | Size | Color Temperature |
LL02 | 20W | 2000Lm | L605*W75*H75mm | 3000K 4000K 6000K |
LL02 | 40W | 4000Lm | L1200*W75*H75mm | 3000K 4000K 6000K |
LL02 | 50W | 5000Lm | L1500*W75*H75mm | 3000K 4000K 6000K |
LL02 | 60W | 6000Lm | L1795*W75*H75mm | 3000K 4000K 6000K |
LL02 | 80W | 8000Lm | L2390*W75*H75mm | 3000K 4000K 6000K |
Length Option: 600mm / 1200mm /1800mm / 2400mm / Customized Available
IP Grade : IP20
Warranty : 5years
* 6063 Extruded aluminium profile
* High lumens LED board
* Built-in driver,PF>0.95,flicker free
* High efficiency LED board
* Range of length options,OEM option
* Wide-beam light distribution
* Switch ON/OFF no dimming
* 0-10V dimming
* Triac dimming
* DALI dimming
* DALI DT8 dimming
* Suspension Mount
* Ceiling Surface Mount
* Track Mount
